Products

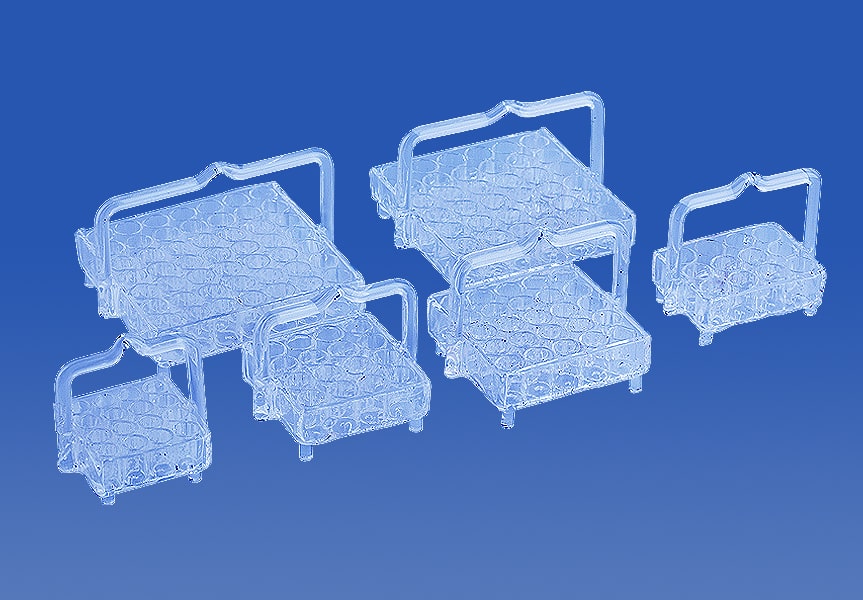

QuartzParting Trays And Thimbles
BASKET TYPE QUARTZ PARTING TRAYS WITH THIMBLES (FIXED THIMBLE)
as per ISO 11426 and BIS Standards
- External Thimble Size : ID 7.5-8mm, OD 10mm can be used inside these Trays.
- We can manufacture Custom made Quartz Partings Trays as per Drawing and Dimensions on request **.
- You can share Sample Size, accordingly we can suggest Parting Tray size.
- We also fabricate Parting trays for 9, 18, 24, 48, 72 samples against order.
| Cat. Ref No. | No. Compartments for Sampling | Compartment Size (ID x OD) | Approx Dimensions in mm With Handle (L X H X W) |
|---|---|---|---|
| QPT/06 | 2 X 3 | 11 x 13 | 30 x 70 x 55 |
| QPT/12 | 3 X 4 | 11 x 13 | 45 x 70 x 70 |
| QPT/16 | 4 X 4 | 11 x 13 | 56 x 70 x 70 |
| QPT/25 | 5 X 5 | 11 x 13 | 75 x 70 x 85 |
| QPT/36 | 6 X 6 | 11 x 13 | 85 x 70 x 95 |
| QPT/49 | 7 X 7 | 11 x 13 | 95 x 70 x 110 |
| QPT/64 | 8 X 8 | 11 x 13 | 110 x 70 x 125 |
| QPT/81 | 9 X 9 | 11 x 13 | 123 x 70 x 140 |
| QPT/100 | 10 X 10 | 11 x 13 | 136 x 70 x 152 |
REMOVABLE TYPE QUARTZ PARTING TRAYS
as per ISO 11426
- External Thimble Size : ID 7.5-8mm, OD 10mm can be used inside these Trays.
- We can manufacture Custom made Quartz Partings Trays as per Drawing and Dimensions on request **.
- You can share Sample Size, accordingly we can suggest Parting Tray size.
- We also fabricate Parting trays for 9, 18, 24, 48, 72 samples against order.
All Trays are as per BIS Standards. SUITABLE FOR ANALYSIS OF GOLD ALLOYS OF 0.2 G AS PER ISO 11426
Custom made or Larger Sizes available on request. WE ALSO MAKE PARTING TRAYS FOR BIGGER SIZE SAMPLE OF 0.4 G TO 1G FOR ANALYSING GOLD BULLION
| Cat. Ref No. | No. Compartments for Sampling | Thimble Size (ID x OD) | Approx Dimensions in mm With Handle (L X H X W) |
|---|---|---|---|
| QPT/06R | 2 X 3 | 8 x 10 | 42 x 75 x 57 |
| QPT/12R | 3 X 4 | 8 x 10 | 57 x 70 x 72 |
| QPT/16R | 4 X 4 | 8 x 10 | 72 x 70 x 72 |
| QPT/25R | 5 X 5 | 8 x 10 | 87 x 70 x 87 |
| QPT/36R | 6 X 6 | 8 x 10 | 102 x 70 x 102 |
| QPT/49R | 7 X 7 | 8 x 10 | 117 x 70 x 117 |
| QPT/64R | 8 X 8 | 8 x 10 | 136 x 70 x 136 |
| QPT/81R | 9 X 9 | 8 x 10 | 151 x 70 x 151 |
| QPT/100R | 10 X 10 | 8 x 10 | On Request |
| Cat. Ref No. | Description |
|---|---|
| QPT/06 | Quartz Parting Tray for 06 Samples (With Thimble) |
| QPT/12 | Quartz Parting Tray for 12 Samples (With Thimble) |
| QPT/16 | Quartz Parting Tray for 16 Samples (With Thimble) |
| QPT/25 | Quartz Parting Tray for 25 Samples (With Thimble) |
| QPT/36 | Quartz Parting Tray for 36 Samples (With Thimble) |
| QPT/49 | Quartz Parting Tray for 49 Samples (With Thimble) |
| QPT/64 | Quartz Parting Tray for 64 Samples (With Thimble) |
| QPT/81 | Quartz Parting Tray for 81 Samples (With Thimble)9 |
Features of Quartz Parting Trays And Thimbles
- Made From 100% QUARTZ GLASS
- Perfect Uniformity of Quality
- Not Affected by Atmospheric Changes
- Robust Mechanical Strength
- Resists High Temperature upto 1000oC with Thermal Shock
- Withstands Concentrated Boiling Nitric Acid Attack
- Extends inherent parallel processing capabilities of Fire Assay
- Full Scalability to Mass analysis Production Stage
- Save Time – Reduce Manipulation Hazards
- Labor, Reagents (HNO3, H2O) Energy Costs greatly Reduceds
- Assays keep Original Array – No Misplace Errors.
Achievements
- Silica Scientific Currently known as LabQuartz Silica Pvt. Ltd. takes the Pride of fabricating Quartz Parting Tray for the First Time in the World, and changed the scenario of Indian Gold Assaying Industry by replacing Platinum Parting trays to reduce cost of sampling.
- LabQuartz Silica Pvt. Ltd. is the only Manufacturer and Exporter of Quartz Parting Trays with Exports to More than 55 Countries.
- India’s First and Only BIS Approved Quartz Parting Tray Manufacturer.
- World’s Largest Quartz Parting Tray Manufacturer supplying to more than 800 Assaying Centers Worldwide.
Terms of Sale
- This Price List Supersedes All Previous Price Lists
- Price for Basket Type Fixed Thimble & Removable Thimble Trays are same as Quoted above
- Discounts are provided on Bulk Purchases.
- Taxes : 18% GST Extra as Applicable
- Packing and Forwarding Charges Extra as Applicable. (As Actual)
